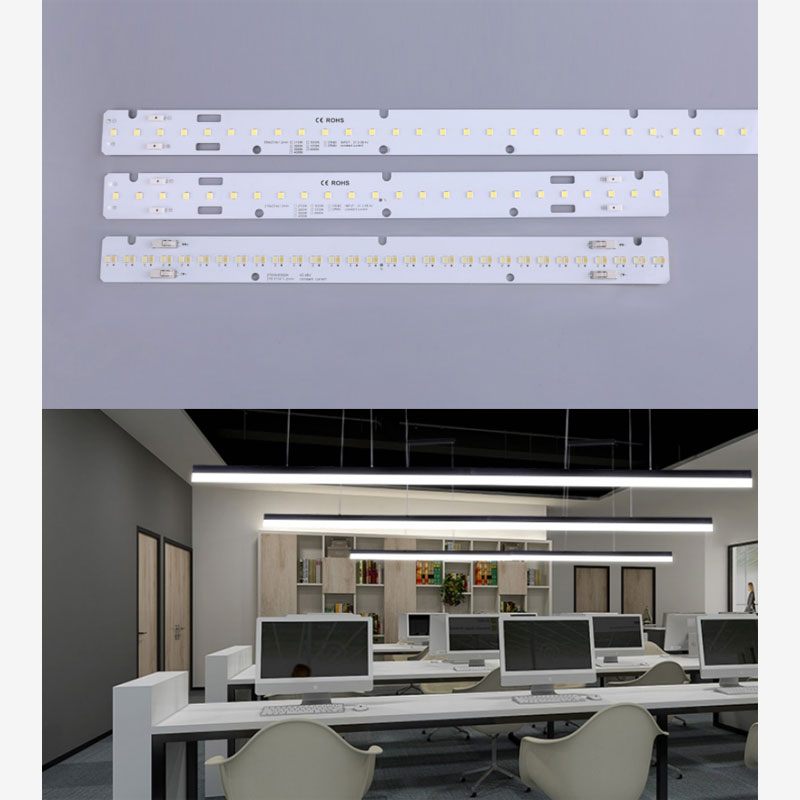

Zhaga standard LED Rigid Strip

Jingzhao Lighting is China Zhaga standard LED Rigid Strip manufacturer and supplier. We have a certain position in the communication equipment market with our professional team, complete facilities and good after-sales service. Since its establishment, it has been well received by customers at home and abroad. We insist on giving customers the best service experience.

Send Inquiry

Product Description

With its sleek design and superior quality, the Zhaga Standard LED Rigid Strip from Jingzhao Lighting factory is the ultimate choice for all lighting needs. Made with the latest LED technology, this strip is highly energy-efficient and produces bright and consistent light throughout its lifespan.

The Zhaga Standard LED Rigid Strip is available in a variety of lengths, allowing you to choose the perfect size for your specific needs. Plus, with its easy-to-use connectors, installation is a breeze – simply plug and play!

FEATURE

• Rigid light engine comply with Zhaga standard, driven by external constant current (C.C.) driver, available to get multiple hig lumen outputs in high-efficacy.

• On-site board-to-board/board-to-power split joint by on-board Wago female connector in soldering-free.

• Designed for profile and linear luminaires made of extruded aluminum or sheet steel.

2835 LED 280x24mm

LED Qty

Increment

Part No.

Voltage

Power

Brightness @4000K&CRI80

Dimension

@IP20

PCB Type

24LED

279mm

(11in)

EP-36-A116

(EP-R2835XX-36-CV-086-A116)

31.2-38.4

VDC

12.6W

1890lm

L279*W23.6 *H4mm

(L11*W0.9 *H0. 16in)

Aluminum Single-Sided

2835 LED 560x24mm

LED Qty

Increment

Part No.

Voltage

Power

Brightness @4000K&CRI80

Dimension

@IP20

PCB Type

48LED

559mm

(22in)

EP-36-A117

(EP-R2835XX-36-CV-086-A117)

31.2-38.4VDC

25.3W

3795lm

L559*W23.6 *H4mm

(L22*W0.9 *H0. 16in)

Aluminum Single-Sided

2835 LED CCT 280x24mm

LED Qty

Increment

Part No.

Voltage

Power

Brightness @4000K&CRI80

Dimension

@IP20

PCB Type

60LED

279mm

(11in)

EP-45-A118

42-48VDC

(EP-R2835XX-45-CV-108-A118)

42-48VDC

12W

1440lm

L279*W23.6 *H4mm

(L11*W0.9 *H0. 16in)

Aluminum Single-Sided

What is Zha ga?

Zhaga is an industry-wide consortium aiming to standardize specifications for interfaces between LED luminaires and light engines .

The aim is to permit interchangeability between products made by different manufacturers .

Zhaga defines test procedures for luminaires and LED light engines so that the luminaire will accept the LED engine

Transport of Goods

Zhongshan as an important city in the Pearl River Delta region, the logistics routes are four and five, basically all over every corner of the country, if you do not have a designated logistics company, we will choose the appropriate special line to deliver to you according to your delivery address, reduce your logistics costs.
