LED Flood Light RF-803 Series

Features & Benefits·IP65 rated LED floodlight·Rotatable modules offering maximum customisation·Heavy duty stirrup mounting bracket·Multiple optics available·Can be installed as a floodlight or high bay·With illumination equivalent to 400 watt and 500W metal halide f......

Send Inquiry

Product Description

Features & Benefits

·IP65 rated LED floodlight

·Rotatable modules offering maximum customisation

·Heavy duty stirrup mounting bracket

·Multiple optics available

·Can be installed as a floodlight or high bay

·With illumination equivalent to 400 watt and 500W metal halide fixtures you'll enjoy an"instant-on,flicker-free”cold start,and industry-leading 155-160Lm/W.

·Protractor scale for easier aiming

· 50,000-hour operating life means years of maintenancefree operation.

·Unique design extracts heat from the light source,thereby extending component life and ultimately prolonging the useful life of the fixture.

·Lightweight design provides easy retrofitting of existing HID installations,along with quick mounting on all new installations.

All Applications

Baseball,Softball

Harbors,Wharfs

Soccer, Lacrosse,Mixed Use

Basketball,Tennis

·Uniformity and light quality

·Light pollution and spillage

·Controls

·High levels of illumination

·Lighted from all sides

·Reducing glare

·Pole location (primarily sidelines)

·Pole quantity

·Number of fixtures per pole

·Pole location

·Pole quantity

·Number of fixtures per pole

·Floodlight,or area-style fixtures

·Court configuration (grouping)

·Court access

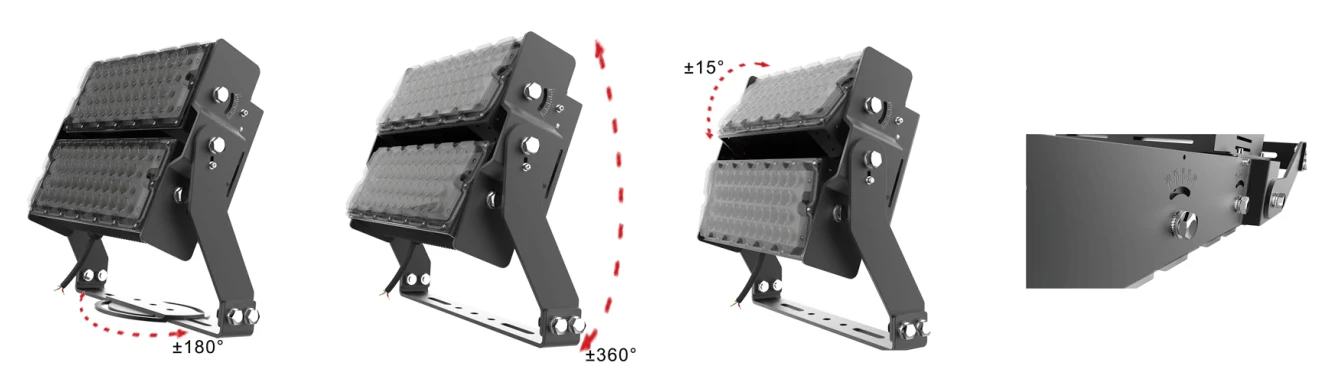

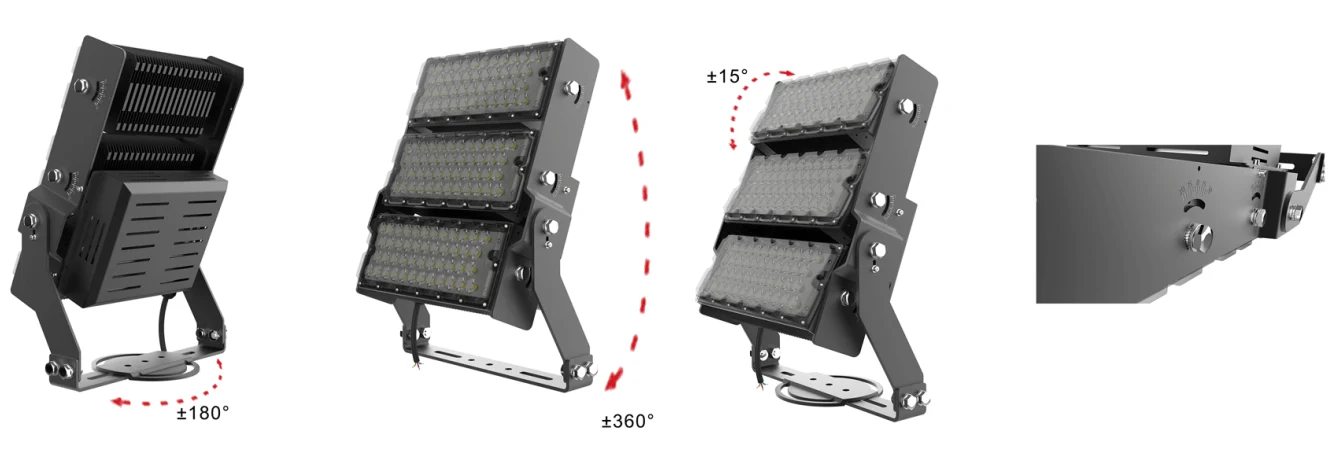

1.Rotatable module

2.Replaceable optical lens

3.Protractor scale for easier aiming

4.Lengthened heavy duty mounting bracket allowing for 360°rotation

5.Salt spray resistant,corrosive resistant,processed with dedicated treatments on the heat sink and other components,these fixtures can withstand corrosive and salt intensive environments.

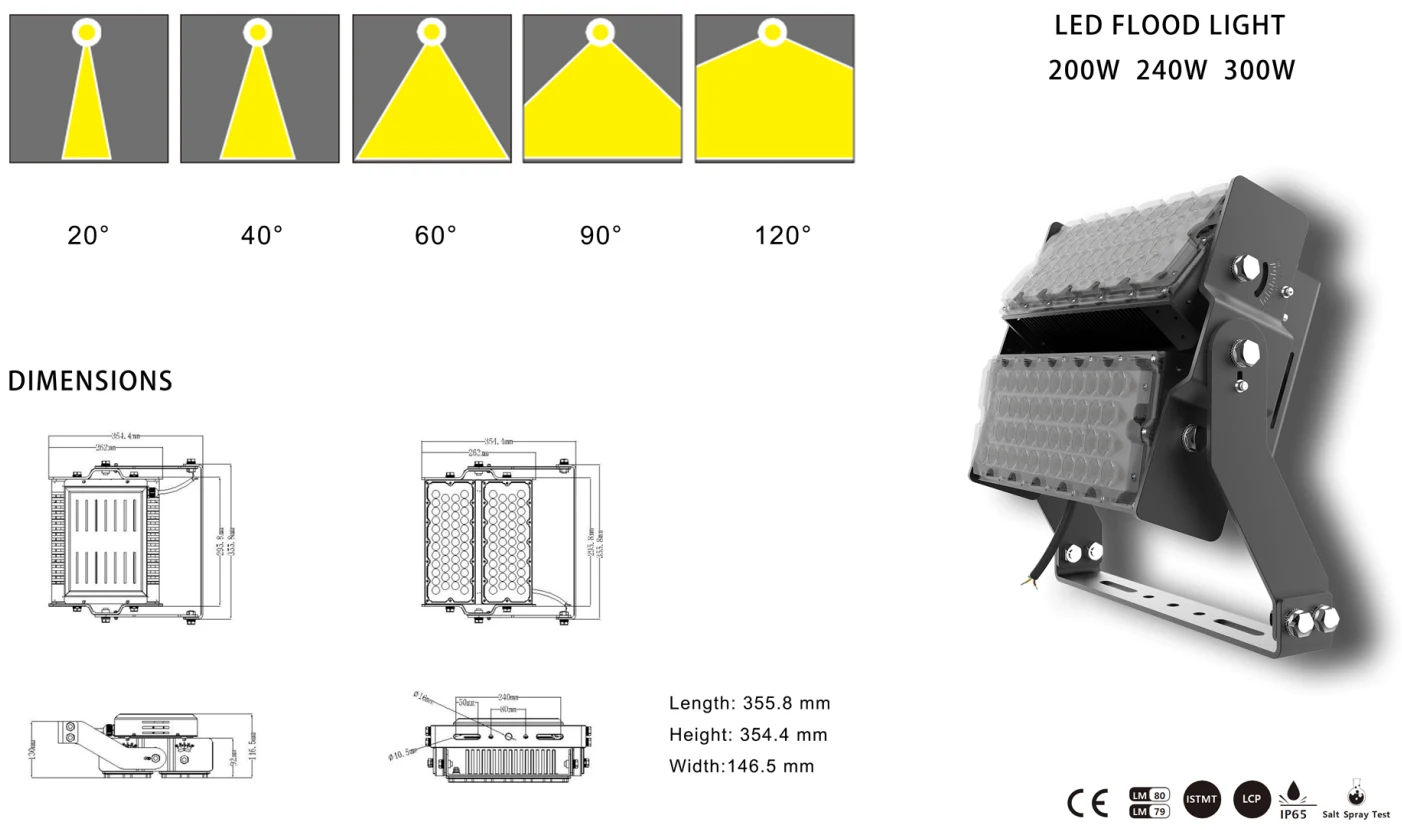

Photometrics (LED Flo0d Light 200W/240W/300W)

Specification Sheet

OPTICAL SPECS	200W	240W	300W
Efficency:	Up to 160 Lm/W±3%	Up to 155 Lm/W±3%	Up to 150 Lm/W±3%
Lumen:	32,000 Lumens	37,800 Lumens	45,000 Lumens
Color Temp:	3000K / 4000K / 5000K / 5700K
Light Source:	Lumileds 5050
Beam Angle:	20°/40°/60°/90° 140*100°/Milky PC 120°

Electrical Specs

Voltage:	200W	240W	300W
Input Voltage:	100-277VAC
Power Frequency:	50/60 Hz
Driver:	Meanwell ELG-240-48A
Dimming:	Dimmable/Non-dimmable

Other Details

Fixture Material:	Marine grade aluminum
IP Rating:	IP65 (TUV report available)
Module rotatable:	Module rotatable up & down 15°
Lifespan:	>50,000 Hours
Dimension:	355.8354.4146.5mm
Certficates:	TUV,CE,SAA,CB, LM79, LM80, ISTMT, LCP

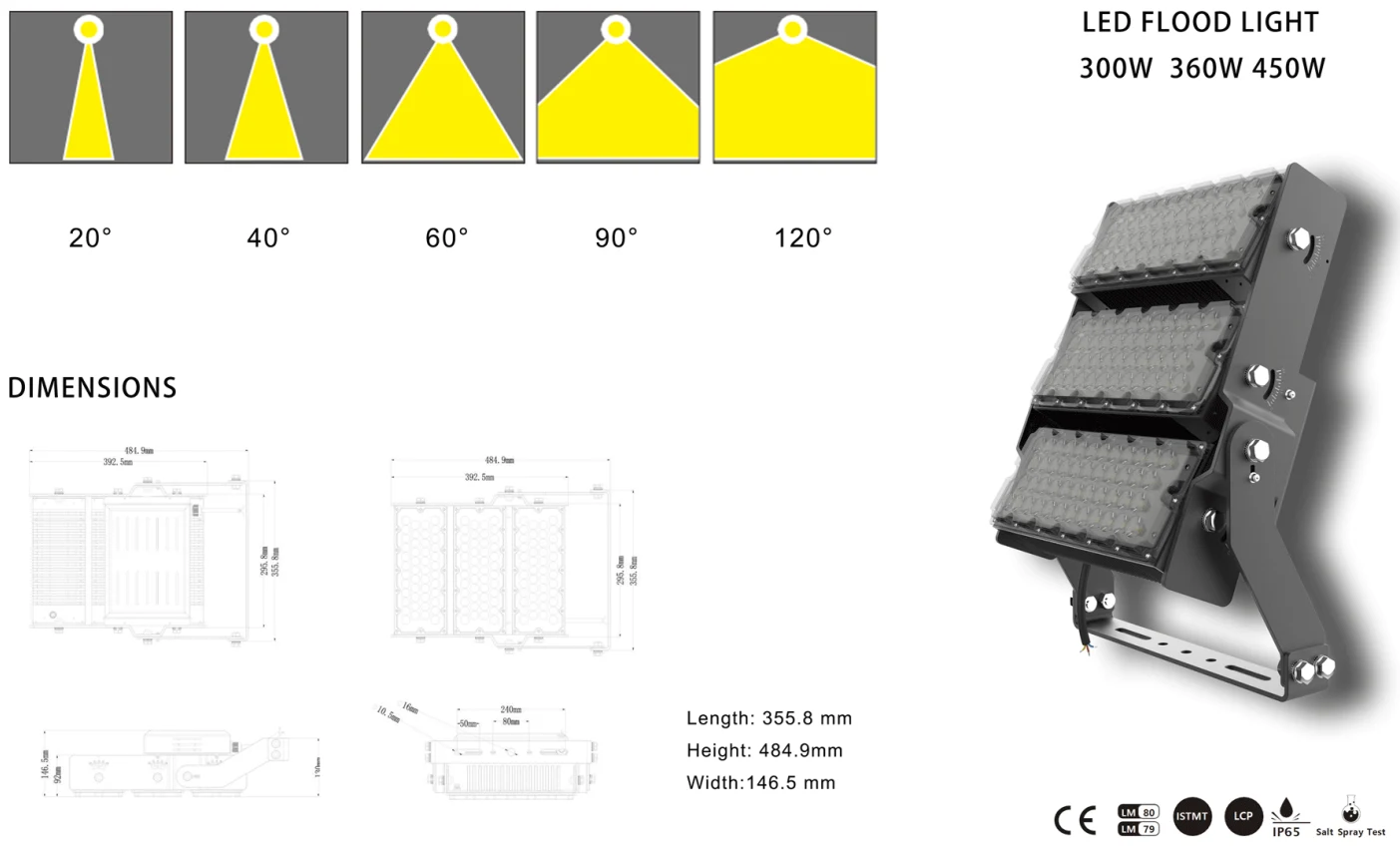

Photometrics (LED Flo0d Light 300W/360W/450W)

Specification Sheet

OPTICAL SPECS	300W	360W	450W
Efficency:	Up to 160 Lm/W±3%	Up to 155 Lm/W±3%	Up to 150 Lm/W±3%
Lumen:	48,000 Lumens	55,800 Lumens	67,500 Lumens
Color Temp:	3000K/4000K / 5000K / 5700K
Light Source:	Lumileds 5050
Beam Angle:	20°/40°/60°/ 90° 140*100°/Milky PC 120°

Electrical Specs

Voltage:	300W	360W	450W
Input Voltage:	100-277VAC
Power Frequency:	50/60 Hz
Driver:	Meanwell ELG-240-48A
Dimming:	Dimmable / Non-dimmable

Other Details

Fixture Material:	Marine grade aluminum
IP Rating:	IP65 (TUV report available)
Module rotatable:	Module rotatable up & down 15°
Lifespan:	>50,000 Hours
Dimension:	355.8484.9146.5mm
Certficates:	TUV,CE,SAA,CB, LM79, LM80, ISTMT, LCP
