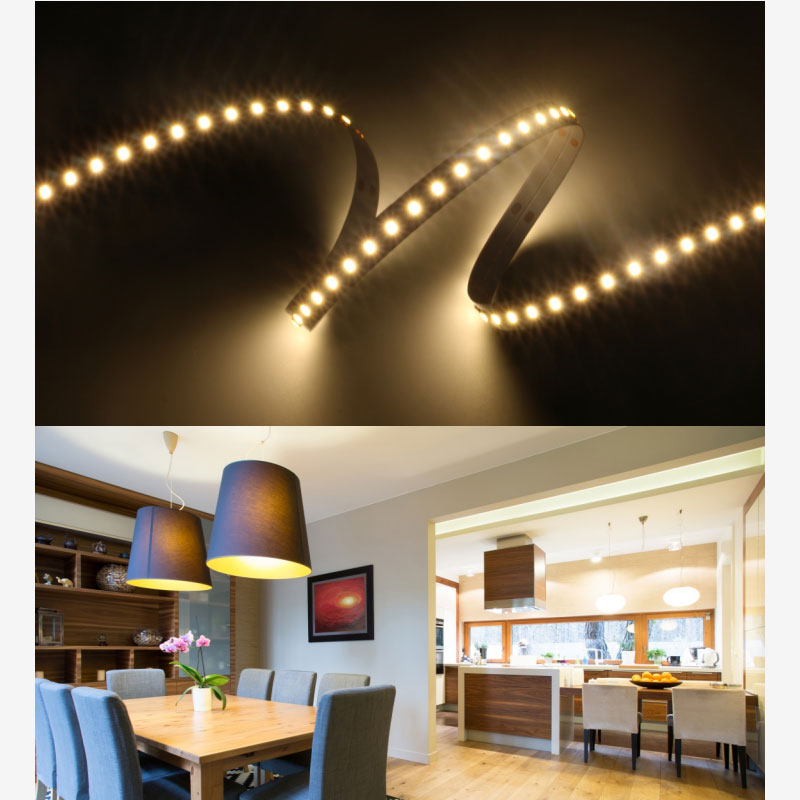

High-Brightness LED Flexible Strip

Product Description

Jingzhao Lighting high-Brightness LED Flexible Strip uses high-quality LED lamp beads with high brightness and strong durability. The flexible material can be bent freely and adapts to various installation environments. Energy saving and environmental protection, low power consumption and long life, it is an ideal choice for home decoration and commercial lighting. Its even light distribution adds a comfortable atmosphere to the space. The simple installation method makes DIY decoration easier. It is suitable for multiple scenes, such as home theaters, bars, KTV, etc., adding brilliant colors to life. The products provide a variety of colors and length options to meet different needs and create personalized lighting solutions. This LED flexible light strip combines beauty and practicality and is a new choice for modern lighting.

FEATURE

• 7 LEDs in series per circuit section, available to achieve highlight efficacy output up to 140lm/W, suitable used as a powerful light engine of luminary lighting with ultra high lumen output.

• 50,000h long lifespan.

2835 LED CRI80 Max. 140lm/W

Brightness

@4000K&CRI90&IP20

Light Efficacy

LED Qty

Increment

Part No.

Voltage

Power

Dimension @IP20

670lm/M

(200lm/ft.)

140lm/W

70LED/M

(21LED/ft.)

100mm

(3.94in)

EP-24-FD35

(EP-X2835XX-24-CV-070-FD35)

24VDC

4.8W/M

(1.5W/ft.)

L5000*W10*H1mm

(L197*W0.39*H0.04in)

1130lm/M

(340lm/ft.)

133lm/W

70LED/M

(21LED/ft.)

100mm

(3.94in)

EP-24-FD35

(EP-X2835XX-24-CV-070-FD35)

24VDC

8.5W/M

(2.6W/ft.)

L5000*W10*H1mm

(L197*W0.39*H0.04in)

1680lm/M

(510lm/ft.)

140lm/W

126LED/M

(38LED/ft.)

55.6mm

(2.19in)

EP-24-FE38

(EP-X2835XX-24-CV-126-FE38)

24VDC

12W/M

(3.7W/ft.)

L5000*W10*H1mm

(L197*W0.39*H0.04in)

2260lm/M

(690lm/ft.)

133lm/W

140LED/M

(42LED/ft.)

50mm

(1.97in)

EP-24-FD36

(EP-X2835XX-24-CV-140-FD36)

24VDC

17W/M

(5.2W/ft.)

L5000*W10*H1mm

(L197*W0.39*H0.04in)

2790lm/M

(850lm/ft.)

133lm/W

168LED/M

(51LED/ft.)

41.7mm

(1.64in)

EP-24-FE39

(EP-X2835XX-24-CV-168-FE39)

24VDC

21W/M

(6.4W/ft.)

L3000*W10*H1mm

(L118*W0.39*H0.04in)

3220lm/M

(980lm/ft.)

Two-Rows

140lm/W

280LED/M

(85LED/ft.)

50mm

(1.97in)

EP-24-FE40

(EP-X2835XX-24-CV-280-FE40)

24VDC

23W/M

(7W/ft.)

L5000*W20*H1mm

(L197*W0.79*H0.04in)

4120lm/M

(1260lm/ft.)

Two-Rows

133lm/W

280LED/M

(85LED/ft.)

50mm

(1.97in)

EP-24-FE40

(EP-X2835XX-24-CV-280-FE40)

24VDC

31W/M

(9.5W/ft.)

L5000*W20*H1mm

(L197*W0.79*H0.04in)

3990lm/M

(1220lm/ft.)

Three-Rows

133lm/W

420LED/M

(128LED/ft.)

50mm

(1.97in)

EP-24-LC48

(EP-X2835XX-24-CV-420-LC48

24VDC

30W/M

(9.1W/ft.)

L5000*W25*H1mm

(L197*W0.98*H0.04in)
