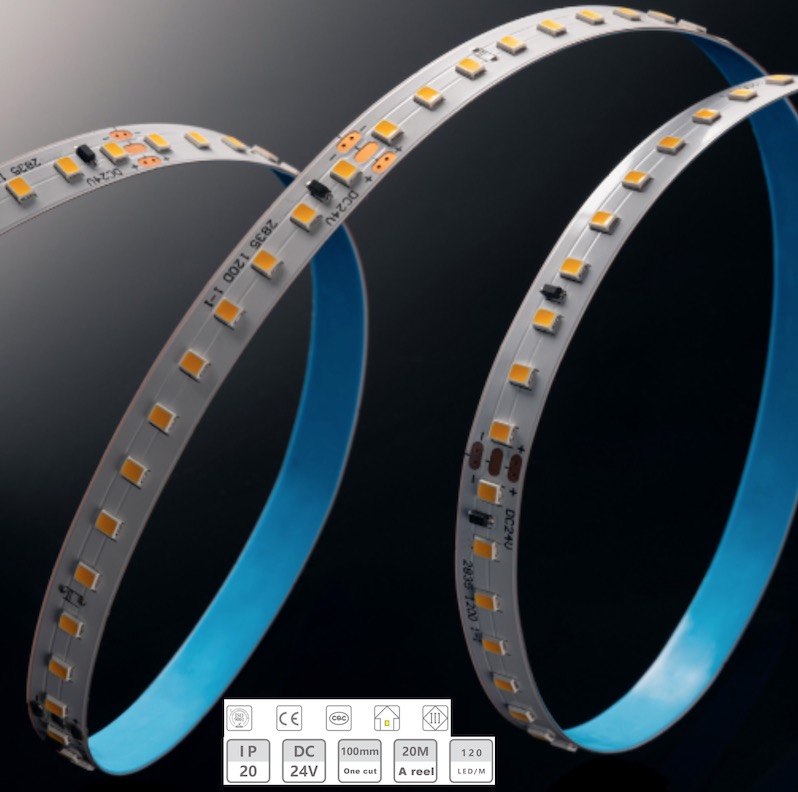

24V-8mm-192D dual color low-voltage light strip

Advantages

1. 24V low-voltage power supply - safe and stable: high safety: 24V is a safe voltage, and there is no risk of electric shock even if the human body comes into direct contact. It is suitable for use in households, children's rooms, and humid environments (such as kitchens and bathrooms). Reduce voltage drop: Compared to 12V light strips, 24V has less voltage loss during long-distance transmission and is suitable for installation in long strips of 5-10 meters (such as cabinets and ceilings). Strong compatibility: Suitable for most 24V LED power supplies and controllers, easy to expand or intelligently control (such as connecting to HomeKit, Mi Home, etc.).

2. 8mm ultra narrow width - flexible hiding, good concealment: The 8mm narrow version design can easily fit into narrow gaps (such as furniture seams, skirting boards, gypsum trunking), achieving the effect of "seeing light but not seeing light". Strong bendability: Flexible PCB boards can be freely bent to meet the needs of curved and circular decoration (such as mirror light rings and curved ceilings).

3. 192 high-density LEDs - uniform light without graininess, no spot: The high-density LED arrangement (192 LEDs/meter) greatly reduces dark areas, provides continuous and uniform light, and enhances a sense of luxury (ordinary light strips usually have 60-120 beads/meter). High brightness: Higher light efficiency per unit area, suitable for scenes that require brightness and softness (such as commercial displays and window lighting).

4. Dual color function - one lamp dual-use: dual color temperature (such as 3000K warm yellow+6000K cold white): freely adjust color temperature, switch from warm light to refreshing cold light with one click, suitable for different scenes (rest/work/party). No need to install two light strips, saving costs and space. RGB dual color combination (such as red+blue): high playability, suitable for atmosphere decoration (festivals, e-sports rooms, bars).

5. Low heat generation&long lifespan: 24V voltage reduces current: Compared to 12V, the heat generation is smaller, extending the lifespan of LED (usually more than 50000 hours). High quality materials: Legitimate brand light strips use copper substrates/high-purity solder paste for faster heat dissipation and slower light decay.

6. Easy to install&low maintenance: Back adhesive fixation: Comes with 3M adhesive, can be directly attached for installation. Trimmable: Most LEDs have a cutting port for every 3-6 pieces, and the length can be cut as needed. Waterproof optional: If the model includes IP65/IP67, it can be directly used outdoors or in damp areas (such as balconies and bathrooms).

7. Recommended application scenarios: Home: Ceiling light trough, wardrobe lighting, kitchen skirting board, mirror headlights. Commercial: Display cabinet lighting, hotel ambient lighting, advertising light boxes. Creative decoration: stair step lights, car interiors, DIY art installations.

Attention: It is necessary to match a 24V power supply, and the power should be calculated based on the total length (with a 20% margin reserved). When installing over long distances, it is recommended to supply power from both ends or use an amplifier to avoid voltage drop.

Product specifications

Sectional view

Optical testing

Installation method

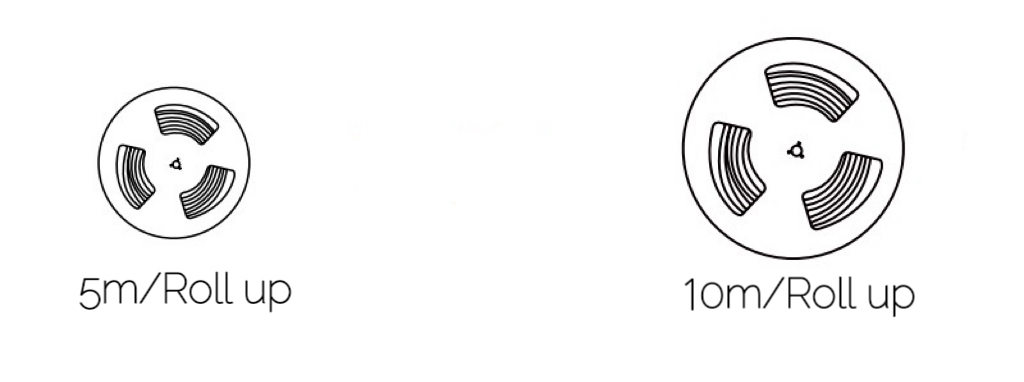

Package

Lighting effect
